The Phantom is DJI"s first small size Ready-to-Fly VTOL. It not only has an attractive appearance, but also has a built-in Naza-M + GPS multi-rotor autopilot system giving a stable and reliable flight characteristic. It also comes with its own dedicated R/C controller. Flight parameters and functions have been setup and tuned by DJI engineers before delivery, so you can fly your Phantom the moment you receive it. It is so easy to operate and stable, this makes aerial filming a breeze.
Videos
Attractive and Highly Integrated DesignA compact and highly integrated design means that it is easier for you to pack it into your backpack. The streamlined design brilliantly reflects the aesthetics of its industrial design and the fantastic visual effects allows you to become the focus of the crowd. Moreover, you can mount a GoPro or other light and handy cameras on your Phantom to shoot some footage from the air which will bring you a brand new travel experience. |
 |
Ready-to-Fly DesignThe hardware mounting and software tuning are all done before delivery, it is ready to fly the moment you unpack the package, just charge the LiPo and install transmitter batteries and some accessories like propellers. |
 |
Contains Remote Control Unit. (Just Add TX Batteries)Phantom contains a remote controller and receiver, which help the user to completely avoid the inconvenience of purchasing such things. The only thing you need to do is to add TX batteries (4x AA dry cell). The 2.4 G ISM frequency makes the effective control distance up to 300 meters (can be impacted by the specific flight environment). The frequency hopping anti-interference design allows multiple remote controllers to work at the same time, and provides a reliable remote communications link. |
 |
Stable, Yet Agile Performance, Easy To FlyPhantom has an integrated flight dynamics system, the Naza-M + GPS multi-rotor autopilot system, as well as the dedicated remote controller and receiver. Flight parameters and functions have been setup before delivery, so you can fly your Phantom the moment you receive it. The proven stability of the Naza-M autopilot system allows you to easily achieve great flight performance. |
 |
Two Flight Control Modes, Including Position HoldWith the built-in Naza-M autopilot system plus a GPS module, the Phantom has GPS Attitude and Attitude Control Mode. Pilots can switch between the two modes to achieve a particular flight experience. |
 |
Intelligent Orientation Control (IOC)Phantom also has the Intelligent Orientation Control (IOC) function of the Naza-M autopilot system. Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points, the forward direction has nothing to do with nose direction: In course lock flying, the forward direction is the same as a recorded nose direction. In home lock flying, the forward direction is the same as the direction as the direction from home point to the multi-rotor. |
 |
Failsafe & Auto Go Home/LandingPhantom also has the failsafe function of the Naza-M autopilot system. This means when the communication between the Main Controller and the transmitter is disconnected, the outputs of all command sticks from controller will go to the center position. If the GPS signal is good enough, the system will automatically trigger Return To Home and landing safely. |
 |
Low Voltage ProtectionPhantom also has two levels of low voltage protection, a function of the Naza-M autopilot system. It prevents your multi-rotor from crashing or other harmful consequences caused by low battery voltage. In the first level of protection, the LED indicator blinks red to warn you. In the second level protection the system will trigger the Phantom to land automatically. |
 |
Maximum Flight Speed 10 M/SThe maximum horizontal flight speed of the Phantom can reach 10m/s and the maximum vertical speed is 6 m/s. The perfect combination of speed and stability allows you to experience the glamour of Phantom. |
 |
High Intensity LED Indicators, To Aid Orientation During FlightUnder each arm of the Phantom there are some high intensity LED indicators which are used to help you to see the orientation during flight. |
 |

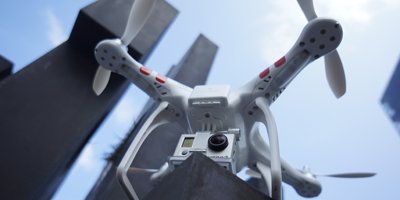

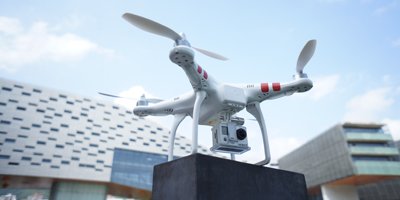

Camera Mount Included For GoPro. (Camera not Included)Phantom has an external removable camera mount for you to mount light and handy cameras (GoPro for example) or other video shooting electronic equipment. It is very convenient for you to record your flight. |
 |
10 To 15 Minutes of Flight TimePhantom includes a 3S LiPo battery (with the capacity of 2200mAh, weight only 170g) and a balance charger. With the all-in-one design and light airframe, the flying time could last 10 to 15 minutes which will give you a more extensive flight experience. |
 |
Basic Parameters
| Operating Temperature | -10°C ~ 50°C |
| Power Consumption | 3.12 W |
| Take-off Weight | <1000g |
| Hovering Accuracy (GPS Mode) | Vertical: ± 0.8m. Horizontal: ± 2.5m |
| Max Yaw Angular Velocity | 200°/s |
| Max Tilt Angle | 45° |
| Max Ascent / Descent Speed | ±6m/s |
| Max Flight Velocity | 10m/s |
| Diagonal distance (motor center to motor center) | 350mm |
ESC Sound Introduction
| Ready | ♪1234567 |
| Throttle stick is not at bottom | BBBBBB… |
| Input signal abnormal | B——–B——–B… |
| Input voltage abnormal | BB—BB—BB—BB… |
Charger & Battery Parameters
| Charger AC Input | 100-240V |
| Charge Current | 1A/2A/3A |
| Current Drain for Balancing | 200mA |
| Power | 20W |
| Battery Type | LiPo |
TX Parameters
| Working Frequency | 2.4 GHz ISM |
| Control Channels | 6 Channels |
| Communication Distance | 300m |
| Receiver Sensitivity（1%PER） | ＞-93dBm |
| Power Consumption of TX | ＜20dBm |
| Working Current /Voltage | 52 mA@6V |
| AA Battery | 4 Required |
